ProLinea Smart Spindle Espag window handle

SKU 20 581890 MSTR

The Smart Spindle espag handle is perfect for maximum choice of spindle lengths with minimum stock holding. Smart.
  • Specs

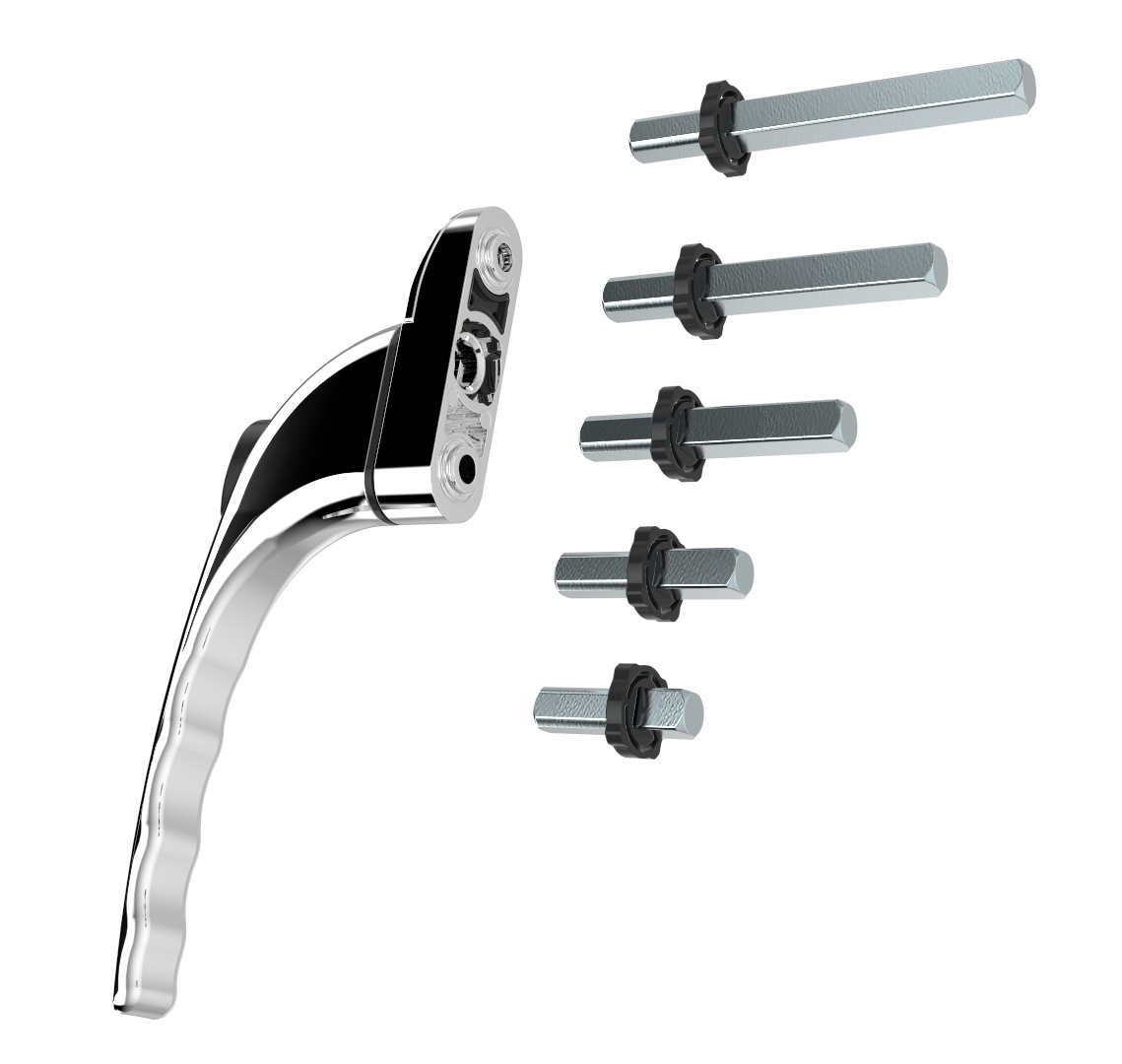

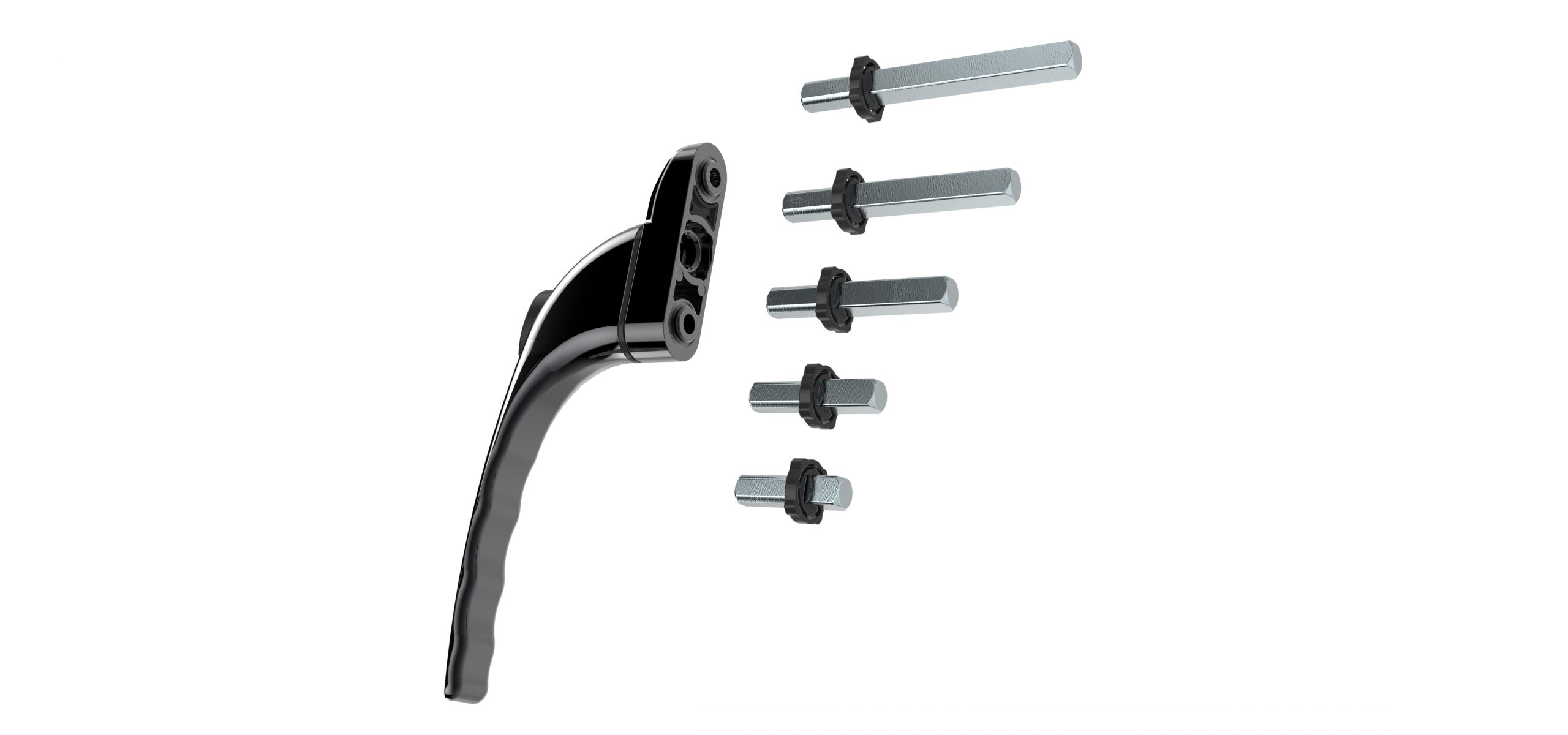

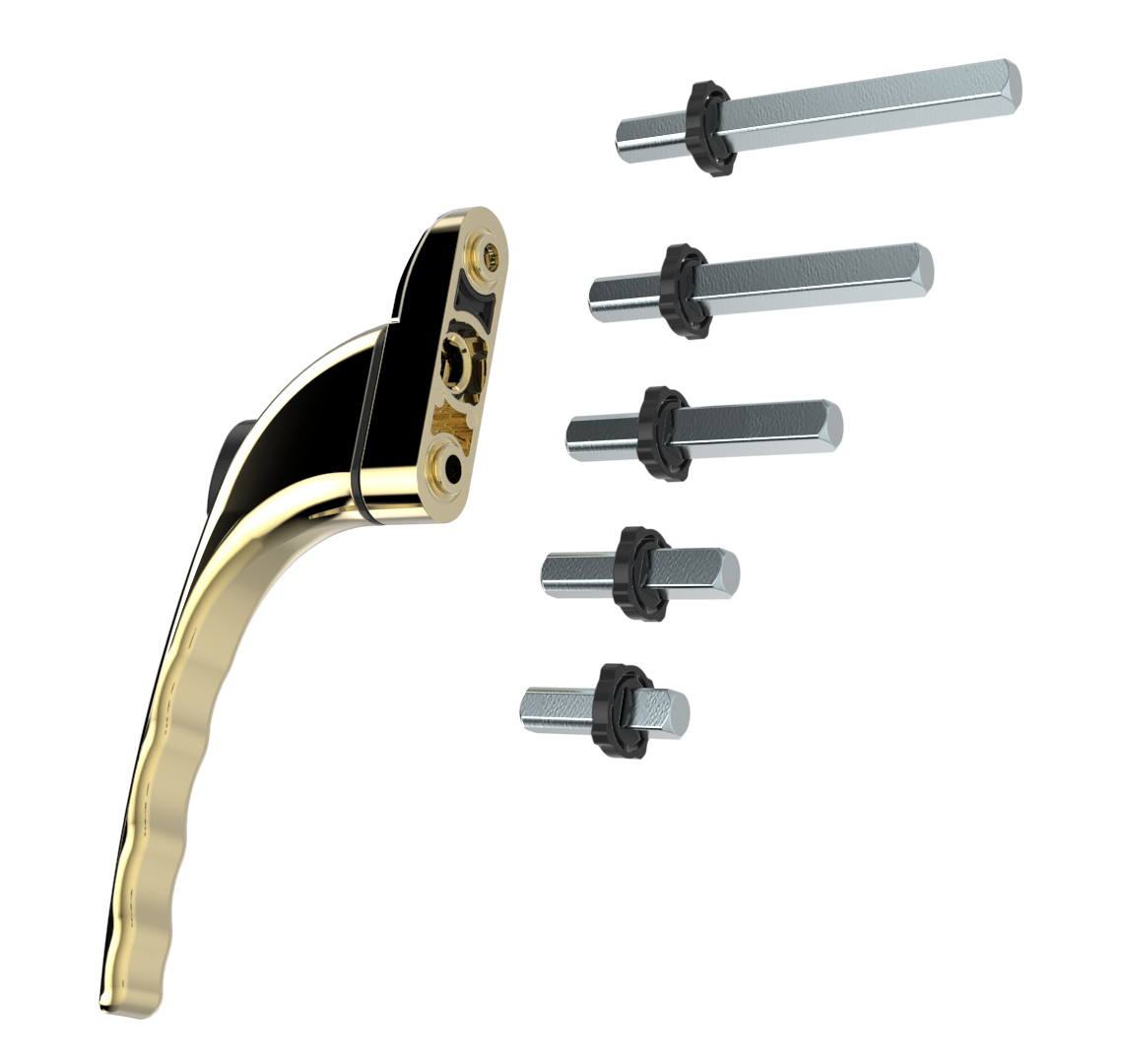

•Supplied with 5 interchangeable pin lengths from
9mm – 55mm
•Pins locate into the back of the handle rose with ease
•A clever one-way fit rosette ensures that only the correct
end of the spindle can be inserted for a secure fit
•The rosette allows positive location with an audible ‘click’
when the lever is rotated through 90°
•Edge-to-edge screw cover cap enhances aesthetics on
the rose for a contemporary look
•Finger-grips on the lever provide optimum comfort when
the handle is in use
• Manufactured from high performance zinc alloy
•Operational reliability – tested to 50,000 cycles at Mila
Test Centre
•Corrosion resistant – salt spray tested to 240 hours
(plated finishes) and 480 hours (powder coated finishes)
• Meets the enhanced security requirements of PAS24:
•An ergonomic button assembly is easy to operate
•Supplied complete with cut-off screws as standard
•Suitable for PVCu, aluminium and timber applications
