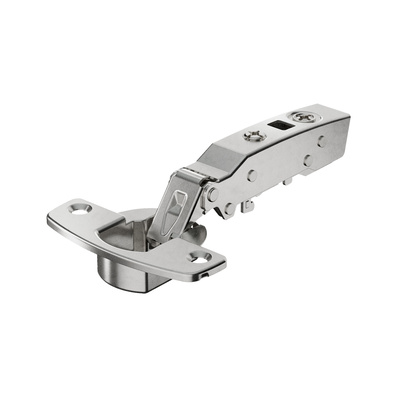

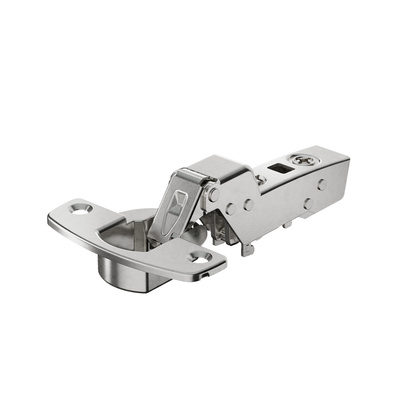

HETTICH SOFT-CLOSE HINGES 110deg Overlay & Inset

  • Description
Description

FOR HINGE MOUNTING PLATES :  https://www.shop4handles.co.uk/product/hettich-hinge-mounting-plate-1-5mm-3-0mm/



      OVERLAY & INSET

  • Sensys 110° hinge
  • With integrated Silent System, with self closing feature (Sensys 8645i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110 °
  • For door thickness 15-24 mm
  • Door mounting option overlay (B 12.5 mm)  OR
  • Door mounting option inset (B -4 mm)
  • TH – drilling pattern 52 x 5.5 mm
  • Cup depth 12.8 mm
  • Installation for screwing on (TH 52)
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel nickel plated
